Specification

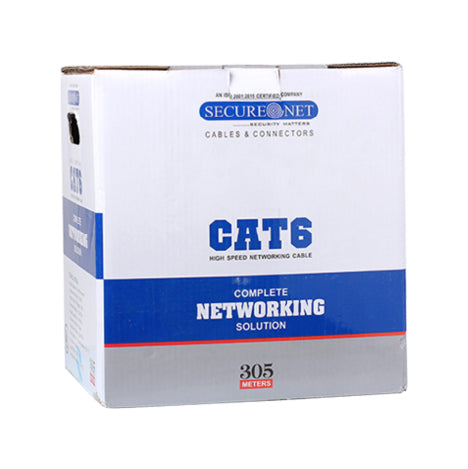

4 PAIRS UNSHIELDED TWIST PAIR (UTP) CABLE
CONDUCTOR METAL – SOLID BARE COPPER
COLOR CODE – GREY
CONDUCTOR DIAMETER – 23AWG
INSULATION DIAMETER – 0.970MM NOMINAL
INSULATION MATERIAL – PE
JACKET MATERIAL – PVC
CABLE DIAMETER 6MM – NOMINAL
PE CENTRAL CROSS SEPARATOR
TECHNICAL DETAILS
MUTUAL CAPACITANCE – 5.6NF/100M NOMINAL
CHARACTERISTIC IMPEDANCE – 100+-15%
NOMINAL VELOCITY OF PROPAGATION – 69%
CHARACTERISTIC IMPEDANCE – 100 + 15
CONDUCTOR RESISTANCE – <9.38/100M
MUTUAL CAPACITANCE – <5.6NF/100
RESISTANCE UNBALANCE – 5% MAX
CAPACITANCE UNBALANCE – 330PF/100M
BENDING RADIUS – < 4 X CABLE DIAMETER AT – 20° +- 1°C
DELAY SKEW – <45NS
PULLING FORCE – 11.5KG
TEMPERATURE RANGE – (-20°C TO 70°C)
